Place of Origin : China
Brand Name : XCMG
Certification : ISO
Price : negotiated
Packaging Details : RO-RO
Delivery Time : within 7 working days
Payment Terms : 30% deposit, balance before shipment
Supply Ability : 1000pcs/year
MOQ : 1 pc
SQ6.3SK2Q/K3Q Truck-Mounted Crane
Parameter
Max Lifting Capacity | 6300 | kg |
Max Lifting Moment | 15.7 | T.M |
Recommend Power | 20 | kw |
Max Oil Flow of Hydraulic System | 40 | L/min |
Max Pressure of Hydraulic System | 20 | MPa |
Oil Tank Capacity | 90 | L |
Rotation Angle | All Rotation | |
Crane Weight | 2117/2270 | kg |
Installation Space | 900 | mm |
Choice of Chassis | CA1163P7K2L3E;CA1176PK2L9T3A95;CA1170PK2L7T3EA80;CA1140PK2L3EA80;DFL1140B;EQ1126KJ1;HFC1202KR1K3;EQ1141NBJ2;EQ5161GFJ7;BJ1317VNPJJ-S5;EQ5201GFJ6;LZ1160LCMT;DFL1250A9;BJ5317ZNPJJ-S;NXG1160D3ZAL1X; |
SQ6.3SK2Q Lifting capability diagram
Working radius (m) | 2.5 | 3.82 | 6.17 | 8.5 |
Lifting capacity (kg) | 6300 | 2900 | 1600 | 1200 |
SQ6.3SK3Q Lifting capability diagram
Working radius (m) | 2.5 | 3.96 | 6.3 | 8.6 | 11 |
Lifting capacity (kg) | 6300 | 2800 | 1600 | 1200 | 600 |
![]() |

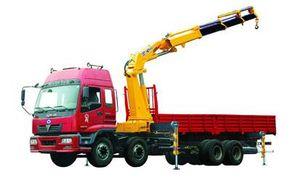

SQ6.3SK2Q/K3Q Truck-Mounted Crane Images |
